| Model | Material | Thickness | Seat Height | Back Height | Seat Angle | Back Angle | Slide | Back Lock |
| TF009S | Aluminium | 3.5mm | Adjustable | Adjustable | Available | 5 positions | ||
| Tension | Synchro | Anti-Shock | Package | P.Dimension | G.W. | Other | ||
| Adjustable | Available | Available | 4pcs/ctn | 50×45×32cm |

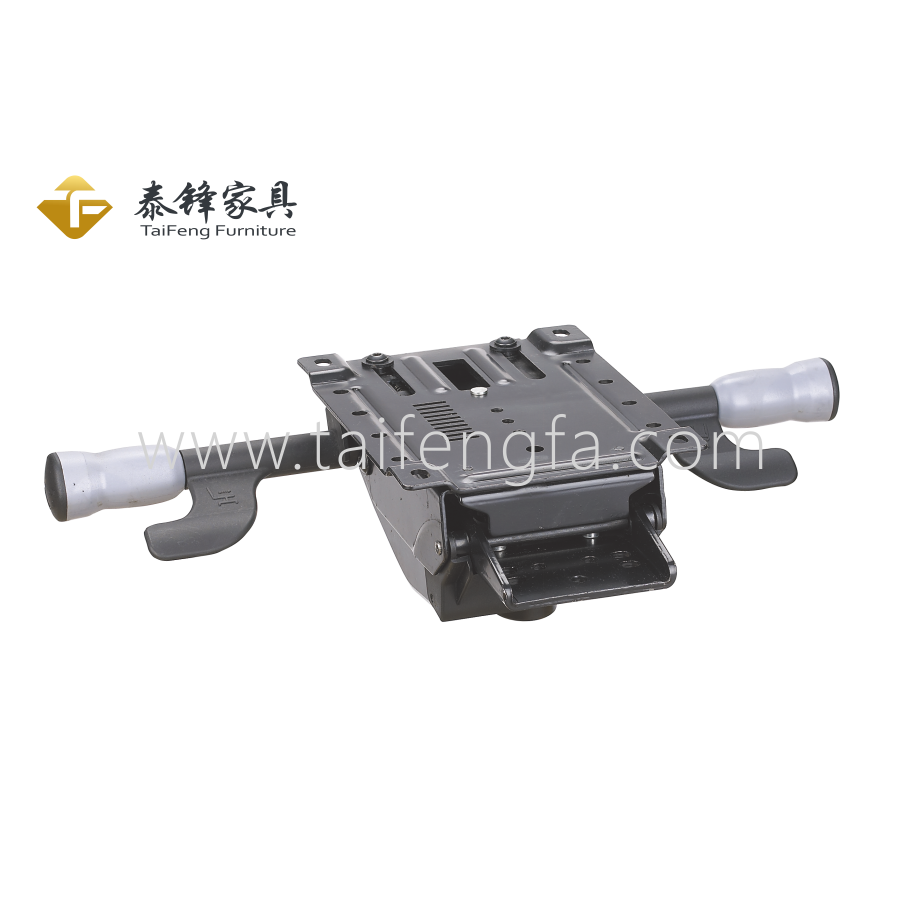

Brief Introduction:
Rotate left lever to lock/unlock the back angle, right lever to adjust seat height, right-side protuberant lever to adjust spring tension, left-side protuberant lever to slide seat at the range of 58mm.

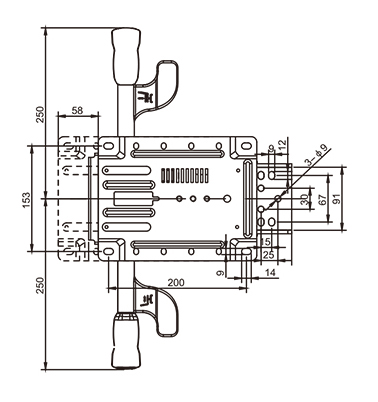

Product and Install Dimension
